E-Paper Front Light
The e-paper front light guide is a light guide film (LGF) designed to provide illumination for reflective e-paper displays.
Since e-paper displays rely on ambient light to present content, a front light guide is required when ambient lighting is insufficient, helping improve readability in low-light environments.
Common applications include e-readers, e-paper smart bus stops, passenger information displays, e-paper advertising signage, and other EPD-based products.
YONGTEK offers both customized front light guide solutions and standard front light guide options compatible with selected E Ink EPD sizes, including 13.3", 28", 32", and 42". Matching LED light bar modules are also available to help customers shorten early-stage product development time and reduce design verification costs.
In addition to front light guides and LED light bar modules, YONGTEK can also provide cover glass, optical bonding, and finished product assembly services.
Customers are welcome to share their EPD drawings, product designs, and specification requirements for further discussion.
| Product | Material | Thickness | Sizes | Applications | ||
|---|---|---|---|---|---|---|

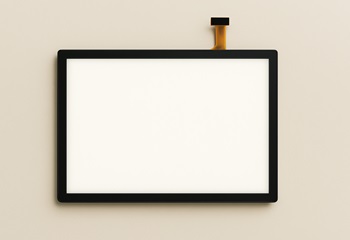

| Custom Front Light Panel | Polycarbonate (PC) | 0.18-0.55mm | 4.3"-32" |
* E-Readers |
||
 |
Request Sample & Best Price |
YONGTEK provides standard front light guides in 13.3", 28", 32", and 42" sizes, compatible with mainstream E Ink EPD sizes.
Matching LED light bar module options are also available to help customers reduce early-stage development costs, complete design verification more efficiently, and speed up product development.
| Product | Material | Sizes | Thickness | Light Input Side Design | Standard Light Bar | Applications | ||
|---|---|---|---|---|---|---|---|---|
| Standard Front Light Solutions | Polycarbonate (PC) | 13.3" | 0.48mm | Single Long Side | O |
* E-Readers |
||
| 28" | 0.55mm | Single Long Side | O | * E-paper display for smart bus stops * E-paper passenger information display for railway stations * Various Epaper sigange applications |
||||
| 32" | 0.55mm | Double Long Sides | O | |||||
| 42" | 0.55mm | Double Long Sides | O | |||||
| In addition to standard front light guides and LED light bar modules, YONGTEK can also provide cover lens glass, optical bonding, finished product assembly, and packaging support. Customers are welcome to share their EPD drawings, product structure, and specification requirements for further discussion. |
||||||||
|
Test Our Standard Solutions! |
Product Applications:
E-reader front light

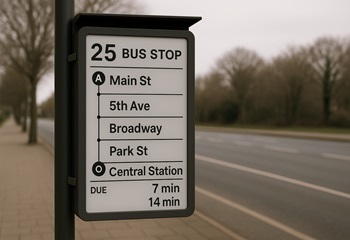

E-paper Passenger Information Displays
