AOI Light Diffuser Film

Home > Products > AOI Light Diffuser Film

PET/PC Optical Diffuser Films for AOI Vision Inspection

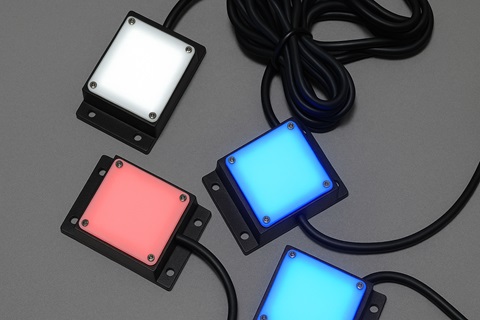

YONGTEK’s AOI light diffuser film is engineered for automated optical inspection (AOI) systems requiring uniform and stable illumination. Designed for both side-lit and direct-lit configurations, the diffuser film evenly diffuses LED light to minimize glare, reduce LED hot spots, and improve camera recognition accuracy. Our led light diffuser films are available in different light transmittance rates and thicknesses to meet the specific needs of various machine vision light sources.

Spec. Detail:

Model Name	Material	Thickness	Light Transmittance	Model Features	Recommended LED Distance (For Direct-lit Type)
DF90H	PET	0.265mm	94%	* High light transmittance with excellent diffusion balance	Recommended for 30 mm distance
DF534	PET	0.22 mm	75%	* Best balance of transmittance and diffusion	Recommended for 20~25 mm distance
DF188SK	PET	0.21 mm	74%	* Best LED hot-spot hiding performance	Recommended for 20 mm distance
DFS90	PC	0.2 mm	92%	* High light transmission with excellent diffusion effect * Good thermal stability	Suitable for 30 mm distance
DFS80	PC	0.2 mm	83%	* Medium balance of transmittance and diffusion * Good thermal stability	Ideal for 20~25 mm distance
DFS70	PC	0.3 mm	70%	* Best balance of transmittance and diffusion * Good thermal stability	Recommended for 20 mm distance
You may also be interested in:  Light iffuser Sheet for AOI   |  Light Guide Plate (LGP)   |   Light Reflector Sheet

Request Sample & Best Price

Specification	Thickness	Roll Size	Cutting Service	Material	MOQ	Lead Time
Standard Spec.	0.2 ~ 0.3 mm	Width: 1250 mm Length: 1000 Meters	* Any size and shape within 1250mm x 1500M * Packed in Roll or Cut by sheet are all available	PET / PC	None	1 ~ 2 weeks

Light Effect:

Certificate:
