Prism (Line) Diffuser Plate for YONGTEK CO., LTD.

Prism (Line) Diffuser Plate

Prism Structure Diffuser Plate Fixture Cover (P Series)

* Special prism (line) pattern design light diffuser, which can help to reduce UGR value.
yongtek UGR light diffuser
decreasing UGR diffuser plate
Model NameThicknessLight TransmittanceRecommended Application & Model Features
PA-00P 2 mm 96% * prism (line) pattern design plastic sheet, which can help to reduce UGR <19
* one side prism (linear) / one side polished pattern light diffuser panel
* high light transmittance fixture cover, which is suitable to be used in back light fixture
PAA-00P 2 mm 96% * prism (line) pattern design light diffuser panel, which can help to reduce UGR <19
* high light transmittance fixture cover, which is suitable to be used in back light fixture
SpecificationThicknessPlate SizeCutting ServiceMaterialMOQLead Time
Standard Spec. 2 mm  1220 x 1220 mm Any size and shape within 1220x1220mm PS None 1~2 weeks
Customized
Availability
1.5 ~ 6 mm  Max. Width: 1220mm
Length: No Limit
Any size and shape within customized plate size PS
PMMA
3 Tons 3~6 weeks

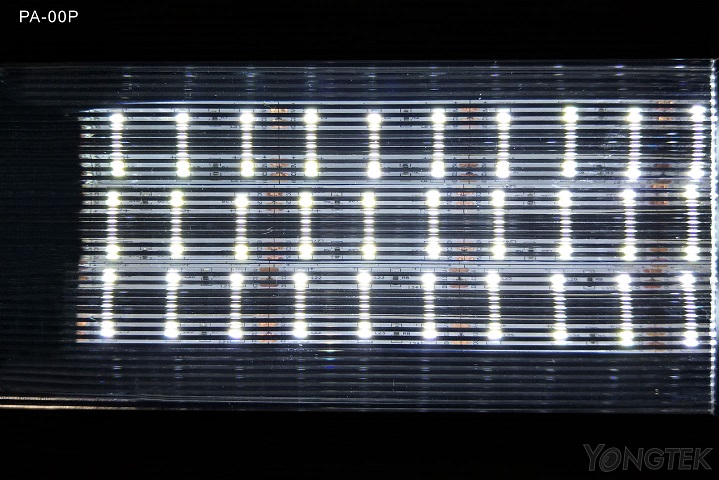

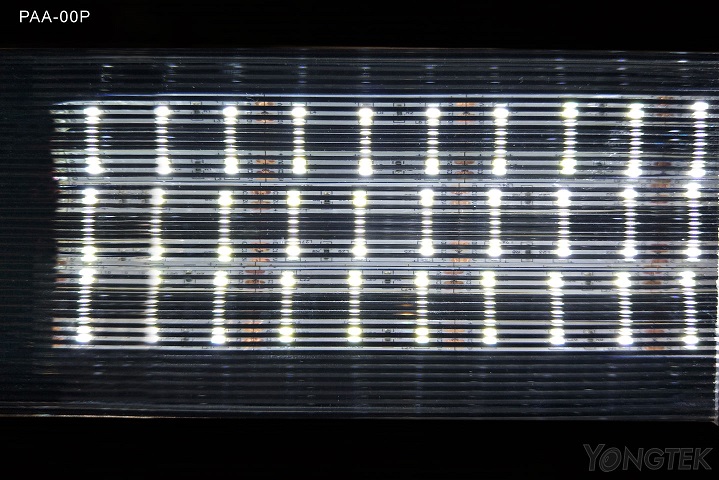

Light Effect:

yongtek prism linear diffuser sheet light effect
yongtek prism line diffuser plate light effect

Certificate:

UL
